Wireworld

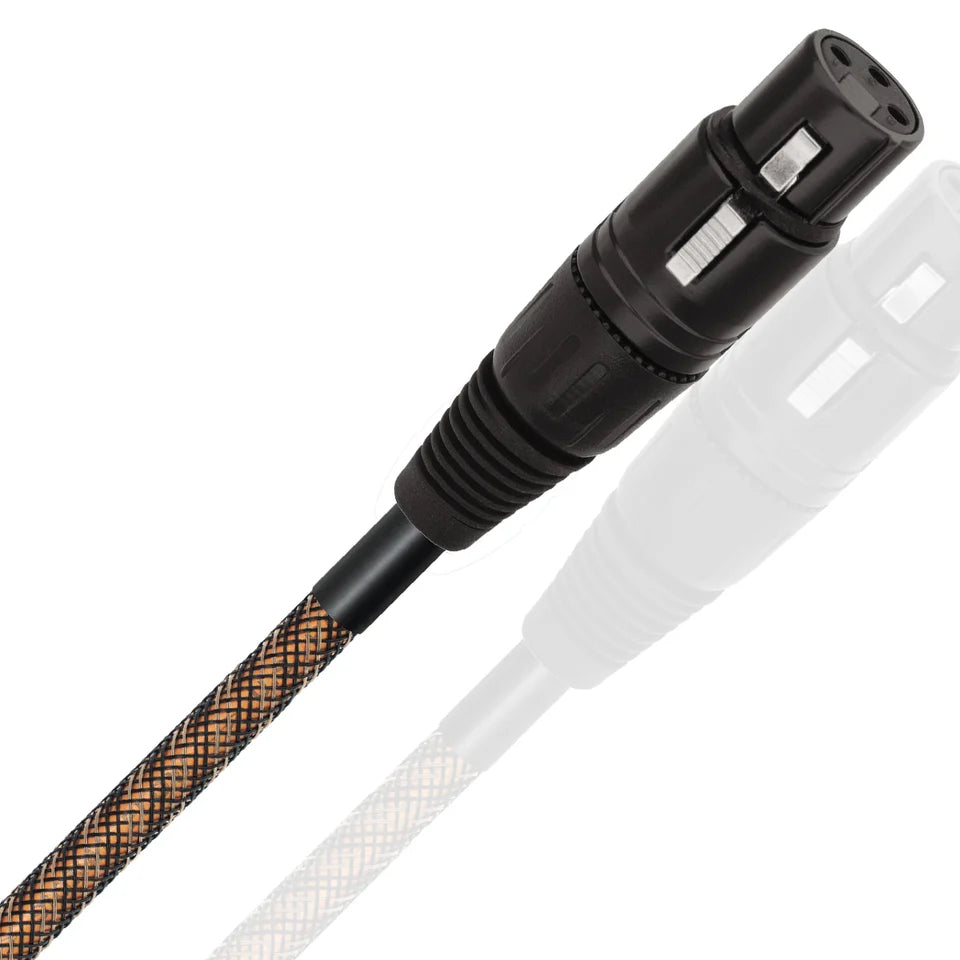

Wireworld Micro-Eclipse 10 Balanced Digital Cable

$187.50
Frais d'expédition calculés à l'étape de paiement.
Length: 0.5m (20 in.)
Balanced AES/EBU digital audio cable from Wireworld's Eclipse family. Pure OCC-7N copper conductors in a 110-ohm DNA Helix design, 26 AWG, with COMPOSILEX 5 insulation and silver-clad copper alloy contacts. XLR female to XLR male, in lengths from 0.5m to 6m. A slim, flexible cable that's easy to route. Custom lengths available. Designed in Florida, USA.

Wireworld Micro-Eclipse 10 Balanced Digital Cable

An AES/EBU connection between your source and DAC carries every bit of your music, and it only works at its best when the cable holds the precise 110-ohm impedance the format calls for. The Micro-Eclipse 10 does exactly that with pure OCC-7N copper, at a price that makes a real digital upgrade easy.

The right impedance, pure copper, and a cleaner digital signal.

The Design

The conductors are 26-gauge pure OCC-7N copper. OCC stands for Ohno Continuous Casting, which grows each strand as a nearly continuous crystal, and 7N means 99.99999% pure.

They're arranged in Wireworld's DNA Helix geometry, built to 110 ohms, the AES/EBU standard. Holding that impedance steady keeps reflections down, so the digital signal arrives with clean edges and stable timing, and your DAC's receiver has an easier job. COMPOSILEX 5, Wireworld's own insulation, is engineered to minimize the static noise that insulation itself can create. Contacts are silver-clad copper alloy.

How It Sounds

Expect a clearer, more relaxed digital presentation than a generic XLR or microphone cable can give, with better focus and natural tone.

Where It Fits

Use it between any source and DAC with AES/EBU connections: a CD transport, a streamer, or a DDC. It's the entry to Wireworld's balanced digital cables, below the Micro-Silver Eclipse 10 and Micro-Platinum Eclipse 10.

Press Recognition

The Eclipse 10 family is part of Wireworld's current Series 10, whose Silver Eclipse 10 earned a Product of the Year Award from The Absolute Sound. Reviews of this model are on the way, and we'll add them here as they're published.

Deciding between AES/EBU and your DAC's other inputs, or need a custom length? Give us a call. We'll help you choose.

Specifications

  • Type: Balanced AES/EBU digital audio cable
  • Connectors: XLR female to XLR male
  • Conductors: OCC-7N copper, 26 AWG
  • Design: DNA Helix, 110-ohm impedance
  • Insulation: COMPOSILEX 5
  • Contacts: Silver-clad copper alloy
  • Lengths: 0.5m, 1.0m, 1.5m, 2.0m, 3.0m, 6.0m; custom lengths available
  • Part code: MEA
  • Warranty: Limited lifetime
  • Designed in: Davie, Florida, USA
