Wireworld

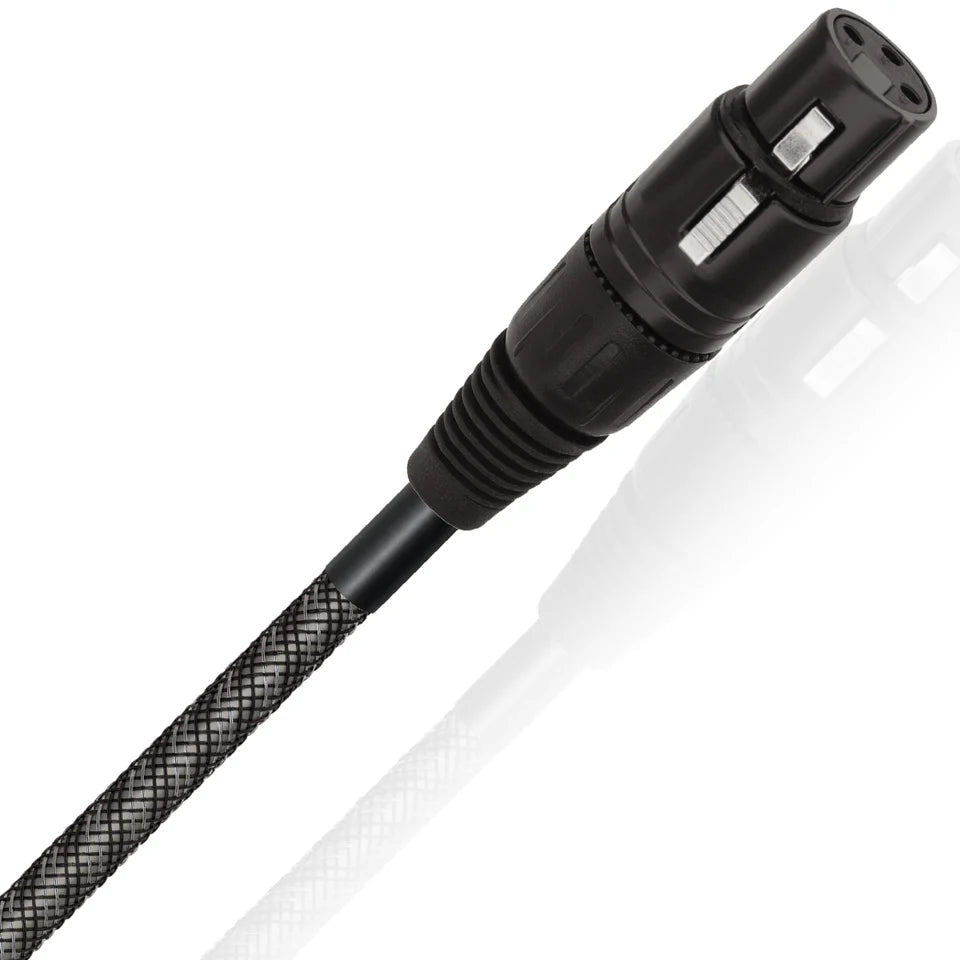

Wireworld Micro-Silver Eclipse 10 Balanced Digital Cable

$275.00
Shipping calculated at checkout.
Length: 0.5m (20 in.)
Balanced AES/EBU digital audio cable from Wireworld's Silver Eclipse family. OCC-7N silver-clad copper conductors in a 110-ohm DNA Helix design, 26 AWG, with COMPOSILEX 5 insulation and silver-clad copper alloy contacts. XLR female to XLR male, in lengths from 0.5m to 6m. A slim, flexible cable that's easy to route. Custom lengths available. Designed in Florida, USA.

Wireworld Micro-Silver Eclipse 10 Balanced Digital Cable

If your transport, streamer, or DDC connects to your DAC over AES/EBU, that one cable carries every bit of your music. The Micro-Silver Eclipse 10 gives that link OCC-7N silver-clad conductors at the precise 110-ohm impedance the format requires, in a slim cable that routes easily behind a crowded rack.

A precise 110-ohm silver path from source to DAC.

The Design

The conductors are 26-gauge OCC-7N copper clad in silver. OCC stands for Ohno Continuous Casting, which grows each strand as a nearly continuous crystal, and 7N means 99.99999% pure.

They're arranged in Wireworld's DNA Helix geometry, built to 110 ohms, the AES/EBU standard. Holding that impedance steady keeps reflections down, so the digital signal arrives with clean edges and stable timing, and your DAC's receiver has an easier job. COMPOSILEX 5, Wireworld's own insulation, is engineered to minimize the static noise that insulation itself can create. Contacts are silver-clad copper alloy.

How It Sounds

Expect the Silver Eclipse character in the digital domain: clarity and fine detail with a natural, unforced tone.

Where It Fits

Use it between any source and DAC with AES/EBU connections: a CD transport, a streamer, or a DDC. It sits between the Micro-Eclipse 10 and the Micro-Platinum Eclipse 10 in Wireworld's balanced digital cables, and it's a strong value step into silver.

Press Recognition

The Silver Eclipse 10 series earned a Product of the Year Award from The Absolute Sound, and reviews of this digital version are on the way. We'll add them here as they're published.

Deciding between AES/EBU and your DAC's other inputs, or need a custom length? Give us a call. We'll help you choose.

Specifications

  • Type: Balanced AES/EBU digital audio cable
  • Connectors: XLR female to XLR male
  • Conductors: OCC-7N silver-clad copper, 26 AWG
  • Design: DNA Helix, 110-ohm impedance
  • Insulation: COMPOSILEX 5
  • Contacts: Silver-clad copper alloy
  • Lengths: 0.5m, 1.0m, 1.5m, 2.0m, 3.0m, 6.0m; custom lengths available
  • Part code: MSA
  • Warranty: Limited lifetime
  • Designed in: Davie, Florida, USA
