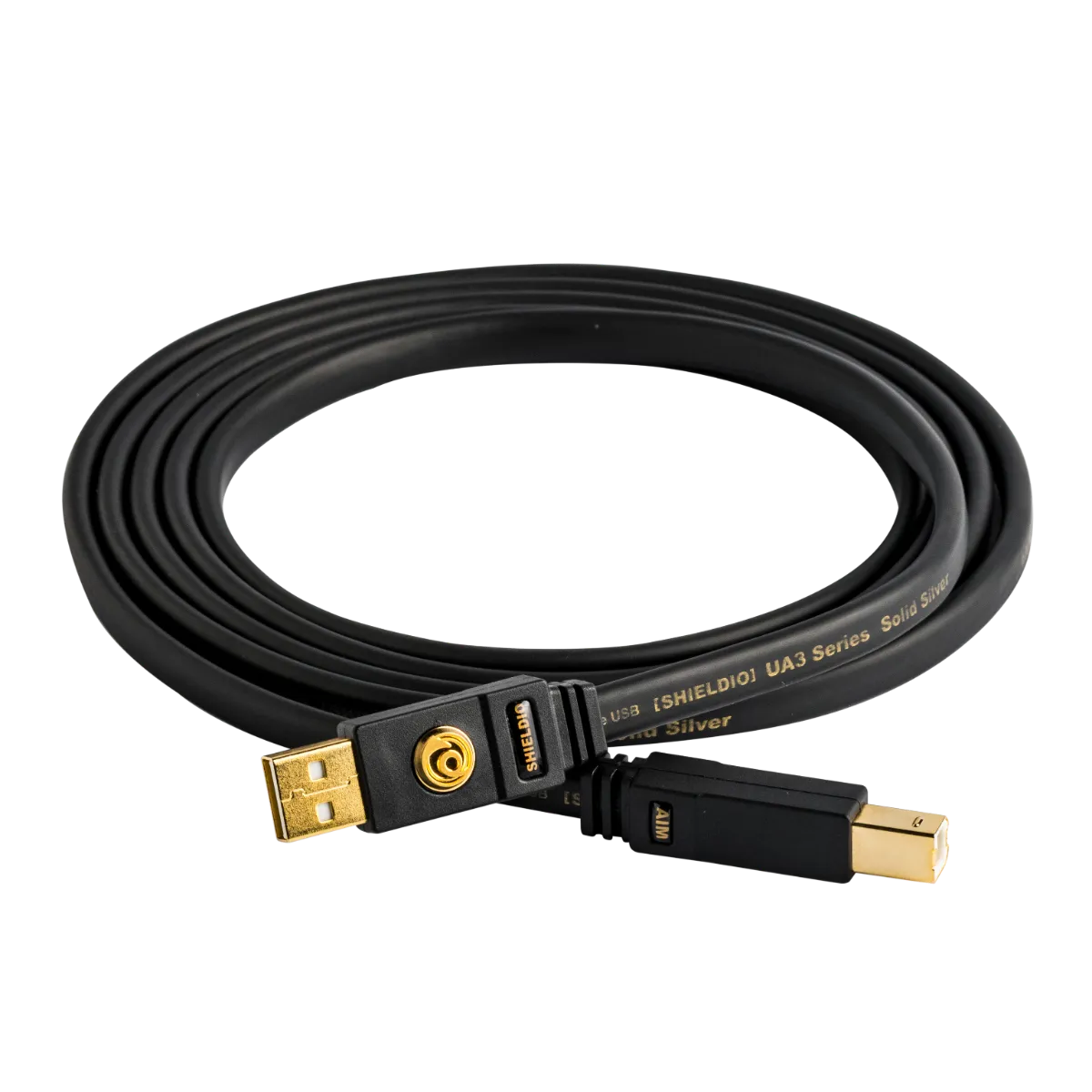

AIM UA3 SHIELDIO USB Audio Cable

Most USB cables are built to move data. The AIM UA3 is built to move music. That distinction sounds like marketing until you look at what is inside — solid silver signal conductors, a quadruple shielding architecture around every line, and a physical structure that keeps power and signal separated from each other along the entire length of the cable. The UA3 is AIM's flagship USB audio cable, and it was designed from the ground up around one problem: the noise that a USB cable carries into a DAC is audible, and eliminating it requires more than better copper.

AIM is a Japanese cable manufacturer with over 40 years of expertise in high-performance cable design. The UA3 won the HiVi Grand Prix award in Japan for peripheral audio products. It is not a audiophile novelty — it is a precision-engineered cable built to the same standard as professional audio infrastructure.

The signal conductors

The signal lines use solid silver conductors at AWG24. Solid silver — not silver-plated copper — means the entire conductor cross-section carries the signal without the skin-effect discontinuity at the silver-copper boundary that plated conductors produce. Silver has the highest electrical conductivity of any metal, and in a signal conductor that translates to lower resistance and better transmission of high-frequency detail. The UA3 uses conductor sizing optimised specifically for high-resolution USB audio transmission — a detail AIM has refined through extensive listening as well as measurement.

The power conductors are high-purity oxygen-free copper at AWG20, a heavier gauge than the signal lines, appropriate for the current demands of USB power delivery without introducing resistance that would affect bus voltage stability.

The shielding architecture — Pulshut MU

This is where the UA3 earns its price. The shielding uses Pulshut MU, a proprietary braid material developed by Asahi Kasei Senko. Pulshut MU is completely non-magnetic — no magnetic materials are used anywhere in its construction — which is significant because magnetic shielding materials can introduce their own electromagnetic effects that contaminate the signal. The insulation resistance of Pulshut MU exceeds 10¹² ohm-cm, and it is effective across the full audible frequency range from 20Hz to 20kHz.

The shielding structure on each line is double: a Pulshut MU braid sheath plus an aluminium foil shield. Signal lines and power lines each have their own independent double-shielding. Between all four lines together, the structure achieves what AIM describes as double sheath plus quad shield — 2 braid plus 4 foil layers total. The effect is measured: AIM's published harmonic distortion analysis shows significant reduction in energy outside the signal frequency after Pulshut MU treatment, with no change to sound pressure level. Less noise, same signal level. That is exactly what effective shielding should do.

SP-Separate flat structure

The UA3 uses what AIM calls the SP-Separate flat structure: signal lines and power lines are independently twisted and then kept at a controlled distance from each other along the flat cable geometry. This matters because power lines carrying USB bus current generate electromagnetic fields that can induce noise into the adjacent signal lines. By managing the twist state and the physical distance between the two line pairs, the UA3 minimises that induction. The flat cable form factor also makes the cable easier to route and less prone to microphonic pickup than a round cable of comparable construction.

The connectors

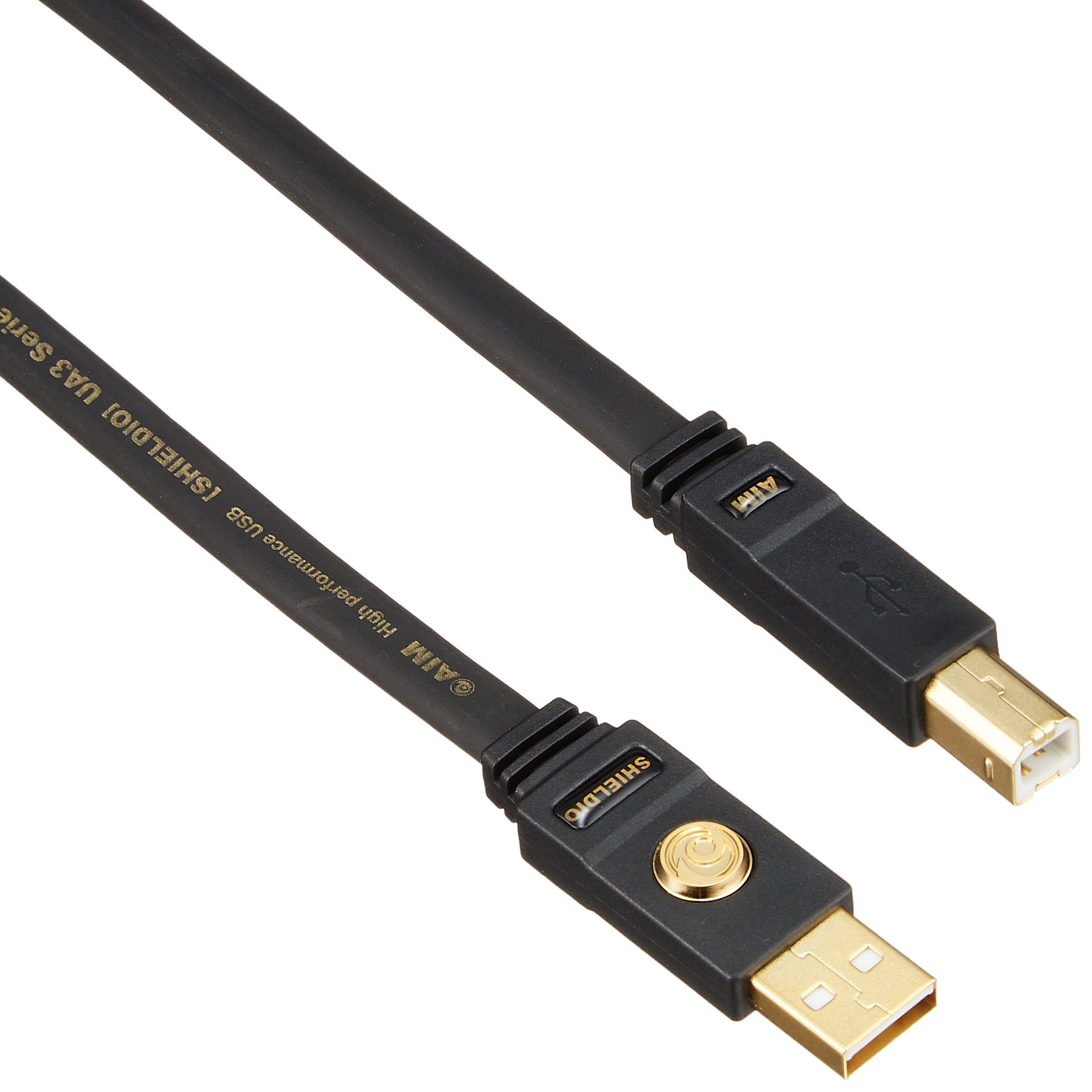

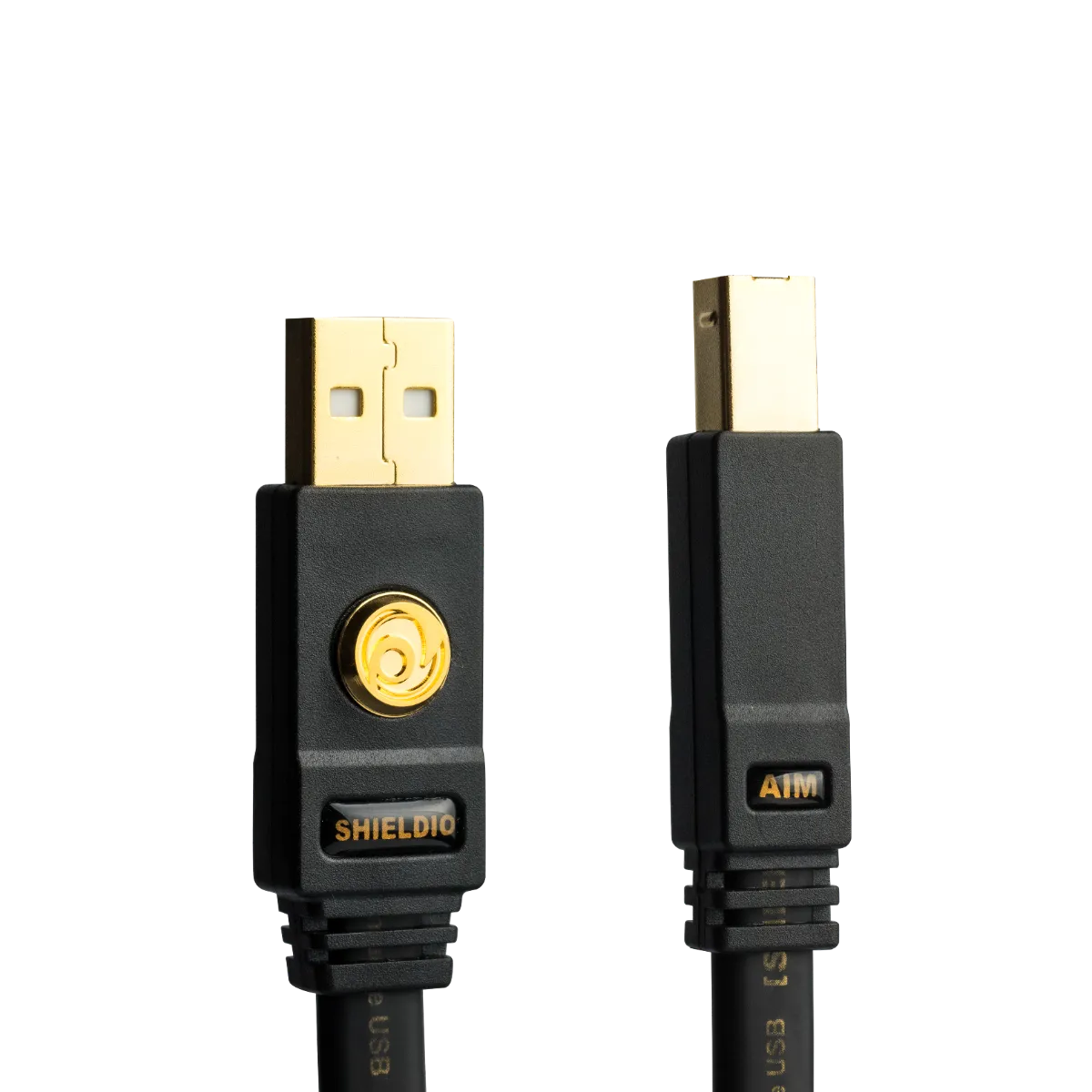

The USB Type A and Type B connectors feature an omnidirectional copper shell plus copper braid shield — the shielding continues all the way to the end of the cable rather than terminating at the cable jacket. The connector terminals are gold-plated. The connector housings are sized to fit standard DAC and computer USB ports without requiring excessive force while maintaining a secure, rattle-free connection.

What it sounds like

The problem the UA3 solves is noise in the USB signal path. The audible result of reducing that noise is a quieter background — the sensation that the music is emerging from silence rather than from a slight electronic haze. Spatial information that was sitting just below the noise floor becomes audible. High-frequency detail becomes cleaner and less fatiguing. These are not subtle effects in a resolving system, and they are consistent with the measured reduction in harmonic distortion that AIM's own data demonstrates.

If your current USB cable is a generic unit that came with a piece of equipment, the upgrade to the UA3 is not incremental. It addresses a structural problem in how digital audio is transmitted, and the improvement is proportional to how resolving the rest of your system is.

Where it fits

The UA3 connects any USB audio source — computer, streamer, transport — to any USB DAC. It is the right USB cable for a system where the DAC and the upstream electronics have already been chosen with care, and where the USB cable is the remaining weak link in the chain. We pair it with the Matrix Audio NT-1, TT-1, MS-1c, and TS-1 as the cable that completes those systems properly.

Press recognition

The AIM UA3 received the HiVi Grand Prix Award in Japan in the peripheral audio products category. A full review is available at 6moons.com AIM's SHIELDIO series has received sustained recognition from the Japanese audio press since its introduction.

Specifications

• Series: AIM SHIELDIO UA3
• Signal conductors: Solid silver (single wire), AWG24
• Power conductors: High-purity OFC (oxygen-free copper), AWG20
• Conductor pairs: 2 twisted pairs (4 conductors total)
• Cable sheath: Pulshut MU braid (Asahi Kasei Senko) on each line
• Cable shield: High-performance aluminium foil shield on each line
• Total shielding structure: Double sheath plus quad shield (2 braid + 4 foil layers)
• Cable structure: SP-Separate flat; signal and power lines independently twisted and spaced
• Cable dimensions: 8.0mm W x 4.5mm H (flat profile)
• Cable colour: Black
• Connector type: USB Type A plug to USB Type B plug
• Connector shield: Omnidirectional copper shell plus copper braid
• Connector terminals: Gold-plated
• Connector size (Type A): 15.50mm W x 41.50mm H x 7.60mm D (excluding protrusions)
• Connector size (Type B): 11.10mm W x 43.93mm H x 10.00mm D (excluding protrusions)
• USB standard: USB 2.0 High-Speed / Full-Speed
• Available lengths: 0.5m, 1m, 1.5m, 2m, 3m
• Award: HiVi Grand Prix 2014 — Peripheral Audio Products category
• Manufactured: Japan

If you want to talk through which length suits your setup, or how the UA3 fits into a specific system — we are happy to help. Call us or start a conversation on the site.
