Garlubidor Phantom DAC

$1,299.00
Versand wird beim Checkout berechnet
Finish: Silver

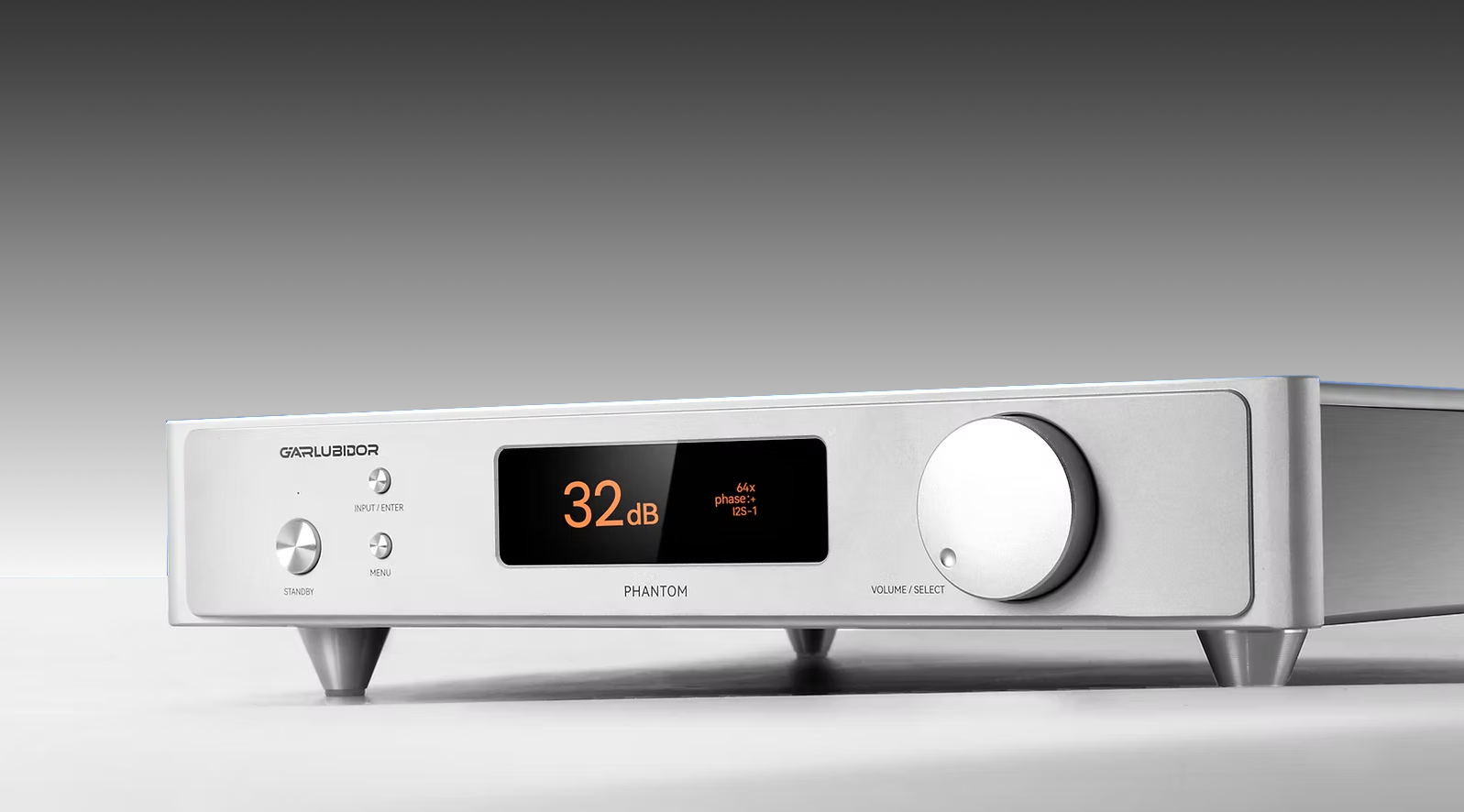

The Garlubidor Phantom is a serious desktop DAC built around a 24-bit R2R ladder architecture with FPGA signal processing and dual high-precision crystal oscillators for rock-solid clocking. It accepts virtually every digital input — USB, optical, coaxial, AES, and dual I2S — and outputs via both balanced XLR and unbalanced RCA. A custom low-noise transformer, front-panel volume control, and orange OLED display complete the package.

The Phantom from Garlubidor is the little brother of the Divinity DAC. Like the Divinity, it is an R2R style DAC with a volume control, balanced and single ended outputs, OXCO clocks and a linear power supply.

Garlubidor Phantom DAC

The Phantom is built around a 24-bit R2R ladder DAC architecture with FPGA-based digital signal processing — a combination that prioritizes musical naturalness and timing accuracy over the convenience of off-the-shelf delta-sigma chips. Clocking is handled by a pair of high-precision, low-jitter active crystal oscillators (45.1584 MHz and 49.152 MHz) covering both common digital audio sample rate families.

USB audio is handled by a proprietary STM32F446 ARM-based implementation, keeping the signal path clean from source to conversion. The power supply uses a custom O-shaped low-noise transformer with dedicated low-noise power management — and the transformer sits in a distinctive tripod-shaped tailstock that's as much a design statement as a functional choice.

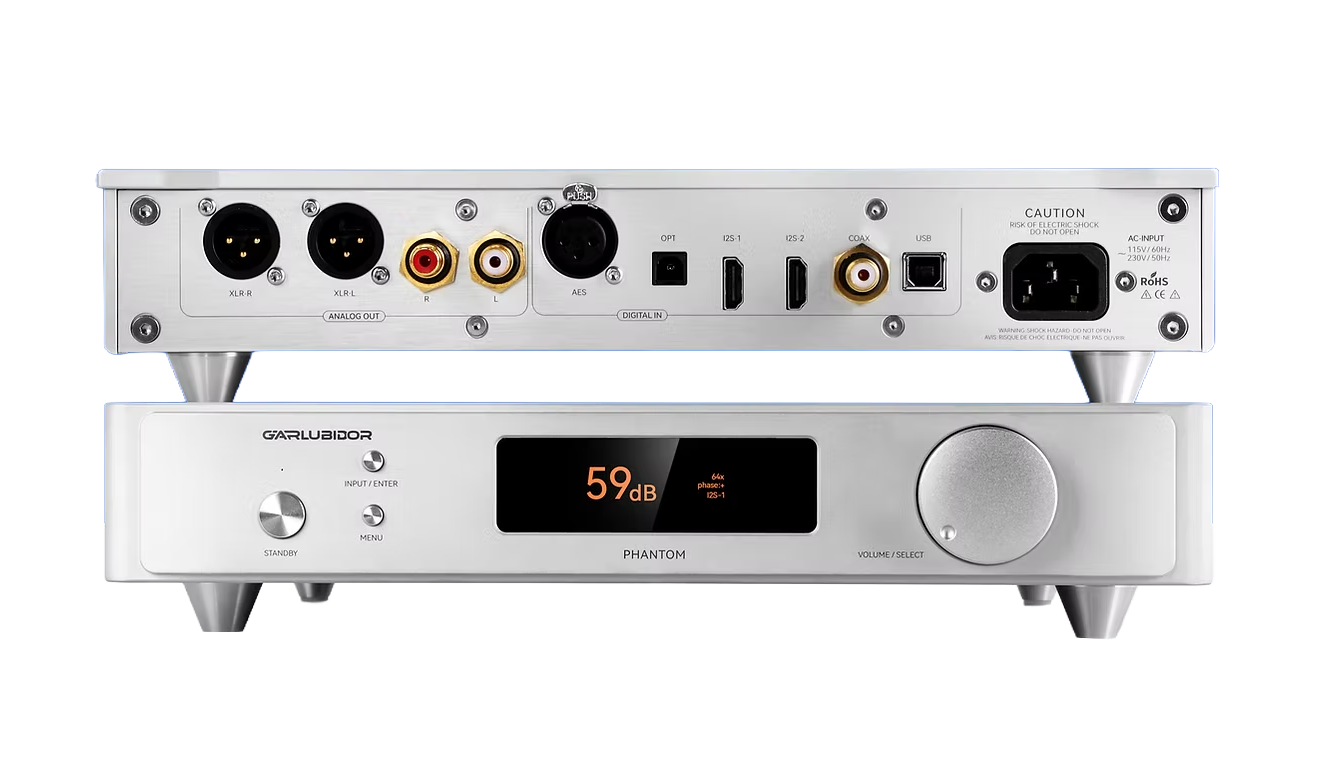

On the input side, the Phantom covers essentially every digital source format: USB, optical (OPT), coaxial (COAX), AES/EBU, and two I2S inputs via HDMI sockets. Output is via a full set of balanced XLR and unbalanced RCA connectors. A front-panel volume control button and 2.23-inch orange OLED display round out the user interface, with infrared remote control support (the GRC-2 remote is a factory option).

At a glance:

  • 24-bit R2R ladder DAC with FPGA DSP
  • Dual precision oscillators for both 44.1k and 48k sample rate families
  • Inputs: USB, OPT, COAX, AES, I2S ×2 (HDMI)
  • Outputs: XLR balanced + RCA unbalanced
  • Volume control, OLED display, IR remote support
  • Custom low-noise transformer power supply
  • AC 115V/60Hz or 230V/50Hz (auto-selecting)

Technical  Specifications

R2R DAC:

  • Proprietary R2R + DSD architecture
  • Truly balanced 24BIT R2R + 6BIT DSD (32 stage FIR filter)
  • Matched precision resistor network array

DSD:

  • COAX/AES/OPT support for DSD64
  • DSD1024 for USB and I2S inputs only

Digital output

PCM: Supports 44.1KHz, 48KHz, 88.2KHz, 96KHz, 176.4KHz, 192KHz and 1536KHz* on USB and I2S inputs

Digital Inputs

  • RCA
  • Coax
  • OPT Fiber
  • AES
    USB Type B
  • I2S (HDMI Holder)

Analog Outputs

  • RCA 2Vrms ，625 Ω
  • XLR 4Vrms ，1250 Ω

AC Power Requirements: 115V AC 60Hz; 230V AC 50Hz
Power Consumption: ≤20W

Frequency Response: 20Hz-80 KHz（+1/-3 dB）
THD+N: 0.002% (A-weighted)
Signal-to-Noise Ratio: 120 dB (A-weighted)
Dynamic Range: 120 dB
Crosstalk: -110 dB
Dimensions: 330W x 294Dx 73H mm (Includes feet）
Color: Silver / Black
Warranty: 12 months
