Ray Tubes

Ray Tubes RESERVE 6SN7

$259.00
Shipping calculated at checkout.
Quantity: Single Tube

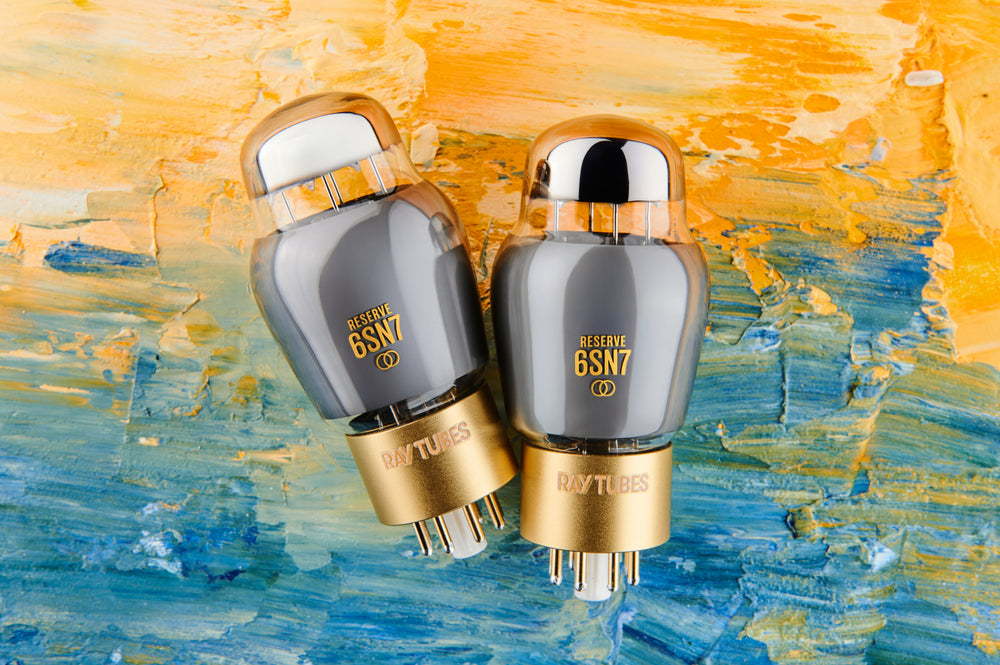

Ray Tubes RESERVE 6SN7 octal dual triode. Bespoke design, small-batch production, an optimized bulb shape, high-purity metals, gold-plated pins, and Ray Tubes' monocrystalline carbon Magic Coating. Fewer than 5% of production qualifies. Ships with an optional rubber damper. One-year transferable warranty. Single, matched pair, or matched quad.

Ray Tubes RESERVE 6SN7

SELECT is the best 6SN7 most listeners will ever need. RESERVE is the one you've always wanted: a bespoke, small-batch octal dual triode that Ray Tubes designs from start to finish for hi-fi audio.

SELECT is the tube you need. RESERVE is the tube you've always wanted.

The Design

RESERVE is where Ray Tubes pulls out every stop. Each tube is designed from start to finish for hi-fi audio and made in small batches, and Ray Tubes says fewer than 5% of production qualifies. The glass bulb is shaped for better heat dissipation and longevity, the metals are high-purity to reduce the chance of flaws, and the vacuum is pulled slowly rather than quickly. A Magic Coating of monocrystalline carbon improves electron flow, helps shed heat, and blocks noise, and the pins are gold-plated. Each tube carries a unique identifier that tracks it through testing.

Every Ray Tubes tube passes a seven-step process in three phases. Phase one checks reliability: soldering inspection under a microscope and a 24-hour burn-in. Phase two measures critical parameters, matches tubes by current draw, and tests for microphonics. Phase three is an amplifier test with listening by Ray Tubes' sound engineers, plus targeted expert listening sessions on randomly chosen tubes. The RESERVE 6SN7 also ships with an optional rubber damper for the rare amplifier where a 6SN7 shows slight microphonics.

How It Sounds

Ray Tubes describes the RESERVE 6SN7 as warm and natural, with smooth treble and an outstanding midrange: smooth, organic bass with sufficient weight; rich, emotionally engaging mids where vocals sound warm and expressive; refined, naturally extended treble; and a balanced dynamic presentation with an expansive soundstage, depth, and stereo separation. WaveTheory said that with these tubes in, his Baltic 3 DAC became the most resolving and holographic DAC he had on hand, and Joy of Vinyl's Rick Coste said they ended his obsession with New Old Stock.

Where It Fits

The 6SN7 is a dual triode usually found in the driver stage of power amplifiers. It has been used in audio since its 1939 introduction, and since 1949 in the famous Williamson circuit. Check your amplifier's manual for the tube type, then choose a single tube, a matched pair, or a matched quad to cover every socket. Ray Tubes publishes a compatibility list, and we can check your amp with you.

Warranty and Break-In

Ray Tubes' One Year Warranty covers manufacturing defects for twelve months, tied to the original invoice and the serial number on the box, so it transfers to a new owner. If one tube in a matched pair or quad fails, Ray Tubes replaces the whole set. Give new tubes 48 to 96 hours of use to break in; early quirks such as slight background noise or imbalance usually fade as hours accumulate. Each tube comes with a user handbook with burn-in guidelines and a certificate of authenticity and warranty.

Press Recognition

  • Head-Fi, Wes S. (April 2024), on the RESERVE 6SN7, which he called one of the best sonic options for a 6SN7. These are owner impressions rather than a professional review. Read the thread at Head-Fi
  • ecoustics podcast (February 2026), with Mitch Anderson and Jeremy Sikora. Sikora said Ray Tubes have been in his main system for over a year. Listen at ecoustics
  • WaveTheory (July and November 2024) and Joy of Vinyl, Rick Coste (January 2025), video reviews of the RESERVE 6SN7.

Wondering whether the RESERVE 6SN7 suits your amplifier, or how many tubes you need? Give us a call. We'll check your amp's tube complement with you.

Specifications

  • Tube type: 6SN7
  • Socket: 8-pin
  • Max anode dissipation: 5 W
  • Max anode voltage: 450 V
  • Max grid voltage: about 8 V
  • Heater: 6.3 V, 0.6 A
  • Transconductance: 2.6 mA/V
  • Amplification factor: 20
  • Internal resistance: 7.7 kΩ
  • Construction: Gold-plated pins; monocrystalline carbon Magic Coating; optimized bulb shape
  • Availability: Single, matched pair, or matched quad
  • Includes: Optional rubber damper; user handbook with burn-in guidelines; certificate of authenticity and warranty
  • Warranty: One year, transferable
